HOME >> PRODUCTS >> TRITON 9700



"Triton 9700 offers a full slate of advertising features
including an optional full-motion video topper "

9700 offers a full slate of advertising features including an optional full-motion video topper that provides the potential for an additional revenue stream. The Triton 9700 complies with all existing and proposed Americans with Disabilities Act (ADA) regulations. This includes standard private audio transactions using leading edge text-to-speech synthesis for the visually impaired.

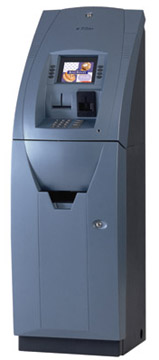

PHOTO :

TRITON 9700 Specifications:

MONITOR
  • 5.7" (145mm) Monochrome LCD transaction screen
KEYPAD
  • Encrypting PIN Pad (EPP) to comply with International encryption standards
  • Triple DES compliant
PRINTER
  • 60mm thermal printer
CASH DISPENSER
  • Dispenses 2.5 notes per second
  • Mounted on a sliding panel for easy service
CARD READER
  • Dip-style card reader or optional EMV smart card reader
SECURITY
  • UL 291 Business Hours Service cabinet or optional UL 291 Level 1 safe
  • Electronic lock standard, MAS Hamilton lock optional
COMMUNICATION
  • Dial-up, satellite, and TCP/IP communication optional
VOICE GUIDANCE
  • Americans with Disability Act (ADA) and Audio compliant
OPERATING ENVIRONMENT
  • Environment Temperature Range : 50F - 104F
  • Relative Humidity: Non-condensing - 20% - 80%
  • Power Consumption: 2.0 @ 115 VAC @ 60 Hz
                                       2.0 @ 230 VAC @ 50 Hz
OTHER
  • Two back-lit graphic topper optional
    • topper
    • high topper
DIMENSIONS
  • Height: 54.4" without topper
                 64.5" with topper
                 77.4" with high topper
  • Width: 16.8"
  • Depth: 19.8"
  • Weight: 172 lbs
