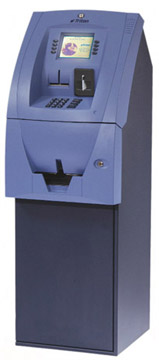

"The Triton 9100 is Triton's most cost-effective ATM models"

Triton 9100 delivers Triton's unparalleled reliability and offers a number of additional features designed to maximize uptime, such as automatic error recovery. Triton 9100 incorporates many of the industry's tightest security features, such as VISA Encrypting PIN Pad (VEPP) and Triples DES, the new standard for PIN encryption.

AVAILABLE IN TWO COLORS :

TRITON 9100 Specifications:

MONITOR
  • 5.7" (145mm) Monochrome LCD transaction screen
KEYPAD
  • VISA Encrypting Pin Pad (VEPP) to comply with International encryption standards
  • Triple DES compliant
PRINTER
  • 60mm thermal printer
CASH DISPENSER
  • Dispenses 2.5 notes per second
  • Mounted on a sliding panel for easy service
CARD READER
  • Dip-style card reader
SECURITY
  • UL 291 Business Hours Service cabinet
  • Manual combination lock or electronic lock
COMMUNICATION
  • Dial-up, TCP/IP or wireless communications optional
VOICE GUIDANCE
  • Americans with Disability Act (ADA) and Audio compliant
OPERATING ENVIRONMENT
  • Environment Temperature Range : 50F - 104F
  • Relative Humidity: Non-condensing - 20% - 80%
  • Power Consumption: 2.0 @ 115 VAC @ 60 Hz
                                       2.0 @ 230 VAC @ 50 Hz
DIMENSIONS
  • Height: 49" without topper
                 60" with topper
  • Width: 16"
  • Depth: 16"
  • Weight: 126 lbs
