"ERGONOMIC DESIGN FOR EASE OF USE"

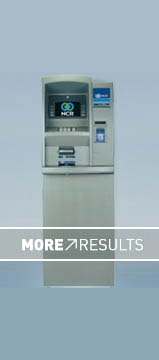

Deposit is the largest single transaction group that is conducted at branch teller positions today. Cash deposit and bill payment, in turn, make up the bulk of these teller based deposit transactions. The Personas 73e is a dedicated deposit function ATM which has been designed specifically to automate both cash deposit and bill payment services. Across all regions of the world, it has proven to be an extremely popular, reliable and cost effective solution. In fact, many of the banks that have successfully migrated cash deposit and bill payment transactions from the teller position onto the Personas 73e, have been able to achieve substantial reductions in overall branch and deposit processing costs.

In addition to cost savings, the Personas 73e also offers significant customer service benefits compared to those transactions conducted at the branch teller position. The Personas 73e offers your customers a quick, convenient and easy to use cash deposit and bill payment solution. Notes are inserted directly into the Personas 73e and are validated and counted, in real time, by sophisticated note recognition technology.

A breakdown, by denomination, of those notes that have been successfully deposited and validated is displayed on the screen. Together with their totals, this information is also printed on the customer's transaction receipt. This provides your customers with immediate proof of the cash that they have just deposited, offering an improved service compared to that available at the typical teller position. This helps to build customer trust and confidence in your deposit solution and helps to maximise transaction migration from the branch teller to the Personas 73e.

Fully compliant with international security and accessibility standards, the Personas 73e can also provide on-line balance enquiry and mini-statement, in addition to cash deposit with receipt. A barcode reader allows the Personas 73e to scan the barcode present on a bill, statement or voucher, enabling cash payments and credits to be made directly via the ATM. This can further encourage the migration of high volume, low commercial value transactions from the branch teller onto the more convenient and cost effective Personas 73e.

PERSONAS 73e Specifications:

MONITOR
  • 10" VGA standard color
  • Optional display privacy filter
KEYPAD
  • Rugged tactile 16 key
  • Secure EPP (Encrypting PIN Pad)
  • Triple DES compliant
  • Remote Key Management Certification as meeting the requirements of ISO
PRINTER
  • Receipt printer 40 column graphics thermal printer
  • Optional sideways feature allows 80 column x 20 row mini-statement
  • Journal printer 40 column graphics thermal printer
CASH DISPENSER
  • Accepts and validates up to 50 notes per transaction
  • Scalable storage up to 8,000 notes
  • Stacking, cassette based storage
  • Upgradeable with a choice of standard, intermediate or high capacity cassettes
  • Optimised to handle both polymer and limp notes
  • Returns notes held in escrow if transaction cancelled by customer
CARD READER
  • DIP
  • Smart DIP: supports smart card
  • IMCRW (Integrated Motorized Card Reader Writer): option to support smart cards
  • CROPF (Card Return on Power Fail)
  • Optional barcode reader
SECURITY
  • UL 291 Level 1
COMMUNICATION
  • Dial-up and TCP/IP connectivity solution
SOFTWARE
  • Microsoft® Windows® XP
  • APTRATM™ software suite
    • Performs Remote Diagnostics
    • Receives & Archives Journals
    • Graphic Images & Video clips transfer
    • Software upgrades downloads
HARDWARE
  • Intel® Penitum® 3 or 4
  • optional CD or DVD ROM
  • optional NTSC, PAL or third party camera
OPERATING ENVIRONMENT
  • Environmental:
              Level 1 dust filtration
              Optional Level 2 dust filtration
              Optional Level 3 dust filtration
  • Environment Temperature Range:
              50F - 104F
  • Relative Humidity:
    Non-condensing - 20% - 80%
DIMENSIONS
  • Height: 55.1"
  • Width: 18.74"
  • Depth:
              41.54" for front access
              43.9" for rear access
  • Weight: 1301 lbs
