"COMPACT AND SECURE CASH DISPENSER"

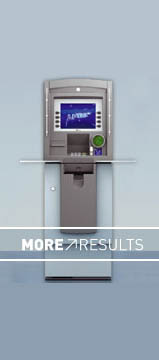

EasyPoint 62 is a small footprint free-standing interior cash dispenser that offers very low total cost of ownership through high reliability, low energy consumption and wireless communication. The EasyPoint 62 attracts more customers into any retail location and offers a range of revenue generating transactions.

The EasyPoint 62 is ideal for retail locations where the presence of an ATM can generate direct income through transaction fees as well as increasing store traffic and sales. Its fresh and distinctive appearance attracts customers. The large screen is ideal for advertising, for supporting more complex graphically intense transactions and for providing consumer guidance using graphical or animated instructions.

With a small footprint and minimal infrastructure requirements, including support for wireless communications, the EasyPoint 62 is very easy and fast to install in a wide range of locations.

EasyPoint 62 operates a Windows® XP platform using NCR APTRA™ software. This means you can run common applications across your ATM portfolio, easily integrate the EasyPoint 62 with the rest of your network, and provide consistent branding and messaging

All of this makes the EasyPoint 62 an ideal solution for retail locations that were previously unsuitable for an interior ATM deployment, so your brand can reach more customers than ever before.

EASY POINT 62 Specifications:

MONITOR
  • 12.1" SVGA standard color with autoscaling capability
  • 8 Tacctile function display keys
KEYPAD
  • Rugged tactile 16 key
  • Secure EPP (Encrypting PIN Pad)
  • Triple DES compliant
  • Remote Key Management Certification as meeting the requirements of ISO
PRINTER
  • 60mm graphics thermal printer
CASH DISPENSER
  • 1 or 2 denominations NCR multimedia cassette with 11.6" (295mm) capacity
CARD READER
  • DIP
  • Smart DIP: supports smart card
  • IMCRW (Integrated Motorized Card Reader Writer): option to support smart cards
  • CROPF (Card Return on Power Fail)
SECURITY
  • UL 291 Level 1 safe construction (business hours rated ATM)
  • UL 291 business hours
COMMUNICATION
  • Dial-up and TCP/IP connectivity solution
SOFTWARE
  • Microsoft® Windows® XP
  • APTRATM™ software suite
    • Performs Remote Diagnostics
    • Receives & Archives Journals
    • Graphic Images & Video clips transfer
    • Software upgrades downloads
HARDWARE
  • Intel® Penitum® 3 or 4
  • optional CD or DVD ROM
  • optional NTSC, PAL or third party camera
OPERATING ENVIRONMENT
  • Environmental:
              Level 1 dust filtration
              Optional Level 2 dust filtration
              Optional Level 3 dust filtration
  • Environment Temperature Range:
              50F - 104F
  • Relative Humidity:
    Non-condensing - 20% - 80%
  • Power Consumption:
              120V
              50Hz to 60Hz
              220V to 240V
              50Hz to 60Hz
DIMENSIONS
  • Height:
              56.6" with pedestal
              50.7" without pedestal
  • Width:
              35.5" with convenience shelves
              18.5" without conveniece shelves
  • Depth:
              29.7" with convenience shelves or
              privacy wings
              27.5" without convenience shelves or
              privacy wings
  • Weight:
              770 lbs for UL291 Level 1
              550 lbs business hours safe
